Saddle Stitchin Book Compensating Stacker 35mm Thickness 15000pcs/H

Name: Saddle Stitchin Book Compensating Stacker 35mm Thickness 15000pcsH
Brand: Ecoographix
Price: 1 USD

Wholesale Saddle Stitchin Book Compensating Stacker 35mm Thickness 15000pcs/H from china suppliers

Brand Name : Ecoographix

Model Number : ECOO 125S

Certification : ISO9000, ISO20001, CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 300 SET PER YEAR

Delivery Time : 10 days

Packaging Details : Wooden case with standard protective layers

Thickness : 1-35mm

Speed : 15000 pcs/hour

Max stacking height : 235mm

Output height : 876mm

Contact Now

35mm Thickness Book Compensating Stacker 15000pcs/H

Description & Application

The 125 Compensating Stacker is an ideal solution for connecting after the high-speed saddle stitching system, which can reliably places the saddle stitched products into piles. It is featured with simple and reliable design, with max. mechanical speed up to 15,000 cycles per hour. The 125 Compensating Stacker is quick to set up, and can offer a wide range of book output directions (left, right, or cross), which makes it suitable for various requirements with minimal space. In order to assist you better understand this newly released Ecoo 125S production line, please watch the demo video for reference by clicking https://youtu.be/rLqqvgcztlY

Saddle Stitchin Book Compensating Stacker 35mm Thickness 15000pcs/H

Technical data

Compensating Stacker Machine
Model	Ecoo-125S
Stacker dimension	“A” Dimension	Min. 102mm Max. 320mm
	“B” Dimension	Min. 152mm Max. 470mm
Book thickness	1-32mm
Max. Stacking height	235mm
Max. Mechanical speed	15000 Cycles per hour
In-Feed height	660-1080mm
Output height	876mm

Saddle Stitchin Book Compensating Stacker 35mm Thickness 15000pcs/H

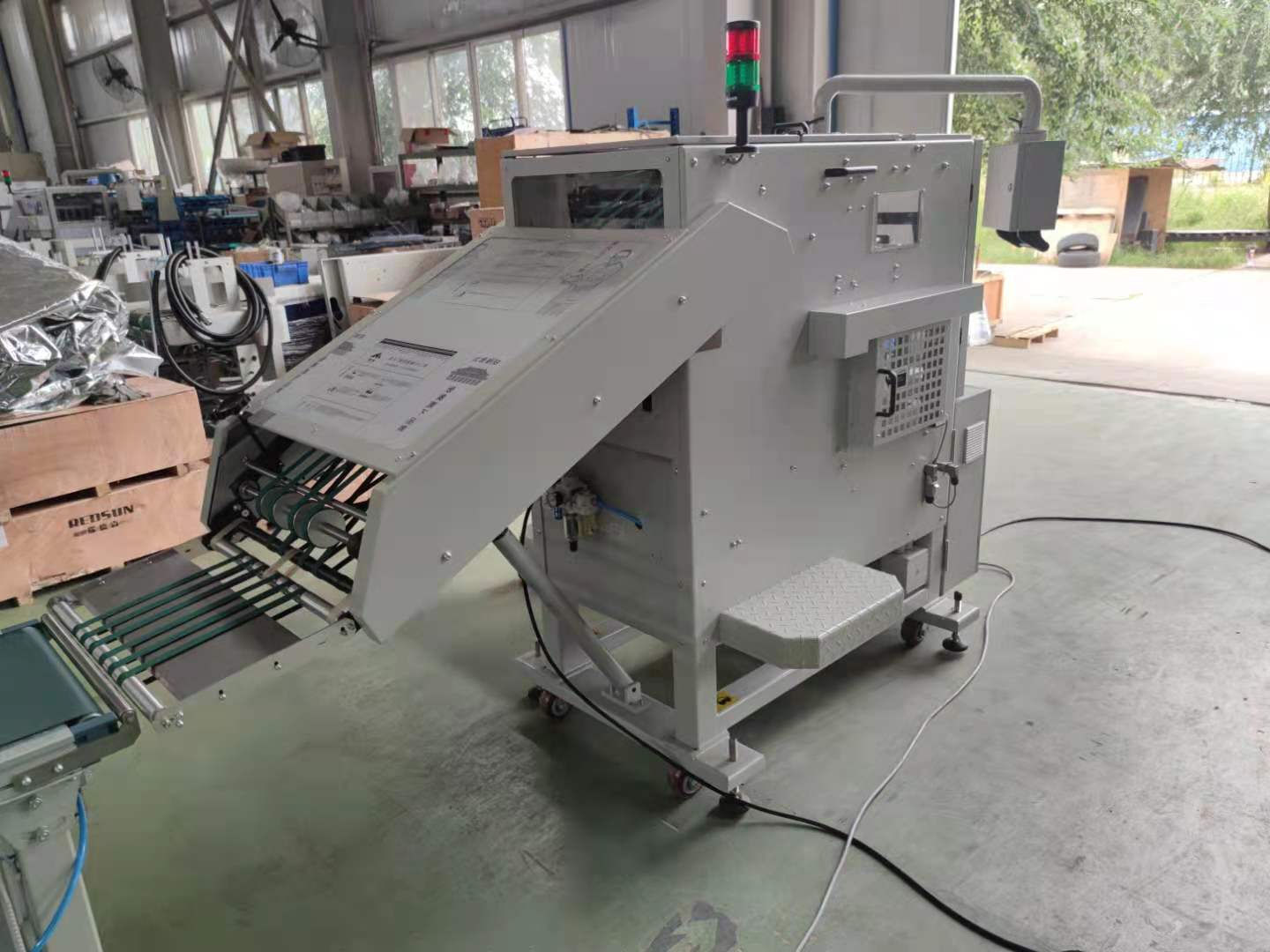

Some pictures of machine in factory
