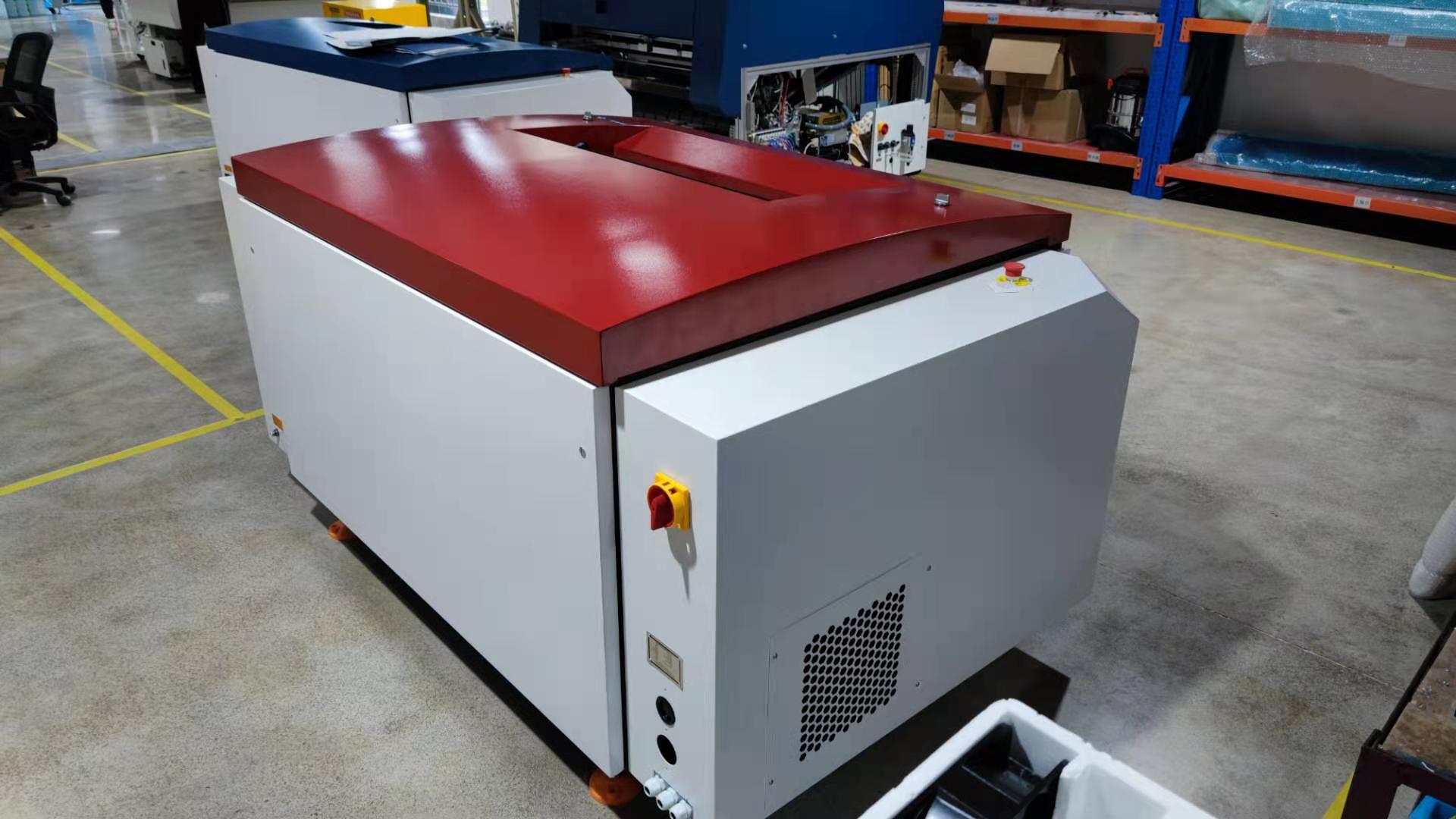

28PPH CTCP Platesetter 48 Channel Computer To Plate Machine

Name: 28PPH CTCP Platesetter 48 Channel Computer To Plate Machine
Brand: EcooGraphix
Price: 1 USD

Brand Name : EcooGraphix

Model Number : EcooSetter UV-400 F/S/E

Certification : ISO9000, CE

Place of Origin : China

MOQ : 1 SET

Payment Terms : L/C, T/T

Supply Ability : 1000 Sets/Year

Delivery Time : 30 Days

Packaging Details : Standard Export Packing

Price : Negotiable

Machine Type : CTCP Machine

Imaging System : 48-Channel, 32-Channel, 24-Channel

Throughput(Plates/Hour) : 28, 22, 16, 800mm X 660mm, 2400dpi

Plate Sizes : Max. 800mm X 690mm, Min. 400mm X 300mm

Exposing Size : Max. 800mm X 646mm, Min. 260mm X 284mm

Media Type : Positive UV-CTP/CTCP Plate or High Sensitive PS Plate

Repeatability : ± 5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23℃ and humidity of 60%)

Machine Size (WxLxH)mm : 1900 X 1200 X 1000

Contact Now

Up To 28PPH 4Up CTCP Platesetter Computer To Plate Machine

------------------------------------------------------------------------------------------------------------------------------------

░ Application ░

EcooGraphix Conventional CTP(UV-CTP/CTCP) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor.

░ Specification ░

EcooGraphix UV Series UV-400 Machine

Model
UV-400F, UV-400S, UV-400E

Exposing Method
External Drum

Imaging System
48-channel, 32-channel, 24-channel, Discrete 405nm laser diode

Throughput
28plates/hour, 22plates/hour, 16plates/hour, 800mm x 660mm, 2400dpi

Plate Sizes
Max. 800mm x 690mm, Min. 400mm x 300mm

Exposing Size
Max. 800mm x 646mm, Min. 260mm x 284mm

Media Type
Positive UV-CTP/CTCP plate or high sensitive PS plate

Plate Thickness
0.15mm to 0.30mm

Resolution
2400dpi

Repeatability
±5μm(Continuous exposing for 4 times or above on the same plate with

a temperature of 23ºC and humidity of 60%)

Interface
USB 2.0

Plate Loading
Semi automatic

Net Weight
800kg

Machine Size(WxLxH)mm
1900 x 1200 x 1000

Power Supply
Single phase: 220AC, +6%, -10%, Power Consumption: 4KW

Environment
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%

EcooGraphix UV Series UV-400 Machine
Model	UV-400F	UV-400S	UV-400E
Exposing Method	External Drum
Imaging System	48-channel	32-channel	24-channel
	Discrete 405nm laser diode
Throughput	28plates/hour	22plates/hour	16plates/hour
	800mm x 660mm, 2400dpi
Plate Sizes	Max. 800mm x 690mm, Min. 400mm x 300mm
Exposing Size	Max. 800mm x 646mm, Min. 260mm x 284mm
Media Type	Positive UV-CTP/CTCP plate or high sensitive PS plate
Plate Thickness	0.15mm to 0.30mm
Resolution	2400dpi
Repeatability	± 5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface	USB 2.0
Plate Loading	Semi automatic
Net Weight	800kg
Machine Size (WxLxH)mm	1900 x 1200 x 1000
Power Supply	Single phase: 220AC, +6%, -10%, Power Consumption: 4KW
Environment	Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%

░ Producing And Packaging ░

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

28PPH CTCP Platesetter 48 Channel Computer To Plate Machine

░ Certificates ░

28PPH CTCP Platesetter 48 Channel Computer To Plate Machine

░ FAQ ░

1) What are your main products ?

Our main products are the Prepress CTP System(4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor), and Post Press Packing equipments(Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching Machine, Book Binding Machine and so on) and the Printing Consumables(Offset Printing Plates, Inks, Printing Blankets, Plate Dot Densimeter) .

Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance. You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.

2) Where is your factory ?

Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!

3) What is your warranty for the CTPs ?

Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.

4) What is the lead time ?

Usually 20-30 days, and we will try our best to meet your demands.

5) Can you also supply the Workflow and RIP ?

Yes, we can provide the Workflow Brain New and RIP Compose V9. Machine price does not include software.

6) What about the installation and after-sales technician support ?

Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have
purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
