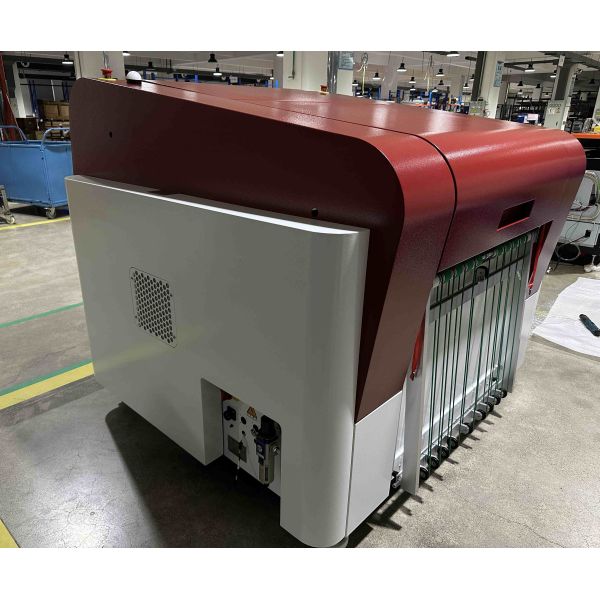

Automatic A1 Online Newspaper Thermal CTP Machine with 45 Plates Per Hour and 256-Channel Laser Autoloader System

Name: Automatic A1 Online Newspaper Thermal CTP Machine with 45 Plates Per Hour and 256Channel Laser Autoloader System
Brand: EcooGraphix
Price: 1 USD

Wholesale Automatic A1 Online Newspaper Thermal CTP Machine with 45 Plates Per Hour and 256-Channel Laser Autoloader System from china suppliers

Model Number : T800XA

Printing Plate Type : 830nm thermal CTP plate or Chemical Free Processless plate

Brand Name : EcooGraphix

Resolution : 2400dpi

MOQ : 1SET

Delivery Time : 30 DAYS

Power Consumption : 4KW

Payment Terms : T/T

Supply Ability : 500SET

Price : Negotiable

Max Plate Size : 1163x940mm

Place of Origin : China

Laser Channels : 256CH

Packaging Details : Standard export packing by plywood case

Certification : CE

Output Speed : 35 to 55pph

Contact Now

Automatic A1 Online Newspaper Thermal CTP 45PPH with Autoloader

Product Overview

EcooGraphix Thermal CTP (Computer To Plate) Plate Making Machine is the essential prepress solution for quick short-run offset printing. It directly outputs computer images to printing CTP plates, eliminating film and reducing labor requirements.

Customers benefit from excellent output image quality, highly reliable stability, compact footprint, and enhanced flexibility.

Technical Specifications

Production Model	EcooSetter T-800XA Offline Easy to Use Thermal CTP
Laser Wavelength	830nm
Plate Type	Positive Thermal CTP Plate
Exposing Method	External Drum
Imaging System	256-channel
Throughput	48 plates per hour (1030mm×800mm at 2400dpi)
Plate Size	Max. 1163×940mm, Min. 300×400mm
Plate Thickness	0.15mm to 0.3mm
Resolutions	2,400dpi
Repeatability	±5μm (continuous exposing for four times or above at 23ºC and 60% humidity)
Interface	USB 2.0
Weight	900KG
Dimensions	2530×1050×950mm (W×D×H)
Power Supply	Single-phase: 220V AC +6%/-10%; Power Consumption: 4KW
Operating Environment	Recommended: 21-25ºC, Maximum: 18-26ºC, Humidity: 40-70%

Key Features

256-channel laser light valve for superior imaging quality

High publishing speed - folio version reaches 38-48 sheets per hour (1,030×800 mm, plate sensitivity 100mJ/cm²)

Square light spot imaging increases color saturation by 21% and delicate accuracy by 10 times

Linear motors provide high-precision positioning and long service life, reducing operation and maintenance costs

Detailed Model Specifications

Model	T-800F	T-800S	T-800E
Imaging Diodes	64-channel	48-channel	32-channel
Throughput	28 plates/hour	22 plates/hour	16 plates/hour
Plate Loading	Manual or semi-automatic	Manual or semi-automatic	Manual or semi-automatic

Technology Advantages

Superior dot quality reproduction proven by worldwide market: 1%-99% dot reproduction up to 300lpi screening
World-class components supplied by international well-known suppliers from Japan, USA, and Germany
Long lifetime and warranty: laser diodes lifetime exceeding 10,000 imaging hours (approximately 200,000 plates)
3-year comprehensive warranty with free replacement of all parts
Guaranteed service: installation and training by factory technical engineers, regular remote maintenance, and 7x24 hours service response
Proven worldwide market leader: Over 6,000 units installed worldwide in the past 10 years

Our Factory

Automatic A1 Online Newspaper Thermal CTP Machine with 45 Plates Per Hour and 256-Channel Laser Autoloader System

Frequently Asked Questions

What are your main products?

Our main products include Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset printing blankets, and Postpress Packing equipment. We provide complete equipment and consumables solutions with comprehensive after-sales service.

Is there any certification for your CTP machine?

Yes, all our CTP machines are certified by SGS and CE standards.

Can you also supply the Workflow and RIP?

Yes, we provide Workflow Brain New and RIP Compose V13 software solutions.

Where is your factory located?

Our factory is in Hangzhou city, approximately 1 hour by train from Shanghai.

What is the production time?

Standard production time is 20 days, slightly longer for customized models.

What is the warranty period for the machine?

3-year warranty for CTP machines. If customers use EcooGraphix CTP plates, all CTP parts are guaranteed for lifetime with no service charge.
